Shanghai Papa Machine Technology Co., Ltd.
1 Years
| Ask Lasest Price | |
| Brand Name : | PAPA |
| Model Number : | P307 |
| Certification : | CE certificate |
| Price : | negotiable |
| Payment Terms : | T/T or L/C at sight |
| Supply Ability : | 80sets/month |
| Delivery Time : | 25-30days |

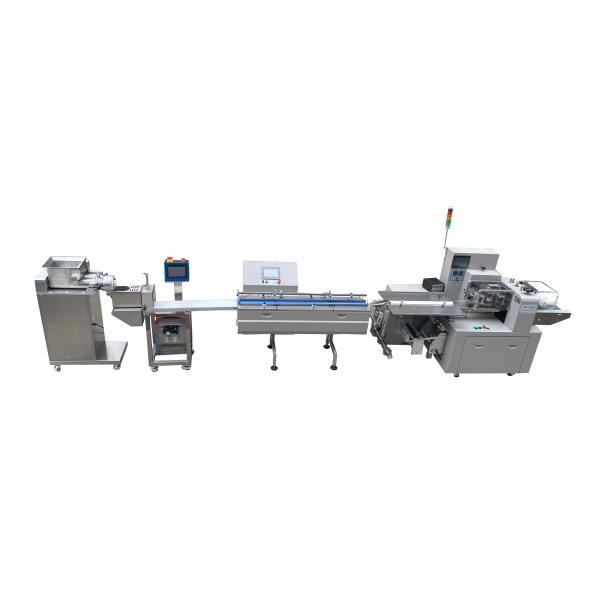

Automatic Small Protein Bar Machine / Energy Bar Production Line /
Date Bar Maker Fruit Bar Making Extruder Manufacturer | |
Model | P307 |
Capacity | 40-60pcs/min |
Power: | 0.6kw |
Voltage | 380V/220V |
Dimension | 2250*560*1380mm |
Weight | 180kg |
Converter | Delta |
Application:
P307 protein bar extruder to make cookie bar
P307 bar extruder to make bar with chocolate enrober and cooling tunnel
Energy bar making by P307 extruder machine
Protein bar machine to make 3 rows bar with chocolate enrober and package whole line
✔ End-to-End Automation – From ingredient mixing to final packaging
✔ High Capacity – Produces 2,000–5,000 bars/hour (adjustable based
on size)
✔ Flexible Formulations – Works with dates, nuts, seeds, chocolate,
and more
✔ Food-Grade Materials – Stainless steel construction, easy to
clean & maintain
✔ Precision Cutting – Uniform bar sizes with smooth edges
| Parameter | Specification |
|---|---|
| Model | Papa P307 |
| Production Speed | 2,000–5,000 bars/hour |
| Bar Weight | 20–100g (adjustable) |
| Power Supply | 380V / 50Hz (customizable) |
| Machine Length | ~5m (full line) |
| Control System | PLC + Touchscreen HMI |
| Materials | 304 & 316 Stainless Steel |
Mixing – Ingredients (dates, nuts, sweeteners) are blended uniformly.
Forming – The mixture is pressed into a continuous sheet.
Cutting – Precision blades cut bars into desired shapes (rectangular, square, etc.).
Cooling (Optional) – For chocolate-coated or layered bars.
Packaging – Automatic wrapping in foil, film, or flow packs.
Date Energy Bars
Nut & Seed Bars
Granola Bars
Protein & Fitness Bars
Chocolate-Coated Snack Bars
✅ Higher Output – 3x faster than manual/semi-auto machines
✅ Lower Waste – Precise ingredient dosing reduces material loss
✅ Easy Customization – Adjust thickness, shape, and recipe easily
✅ Hygienic Design – Complies with FDA, CE, ISO standards
|
|
